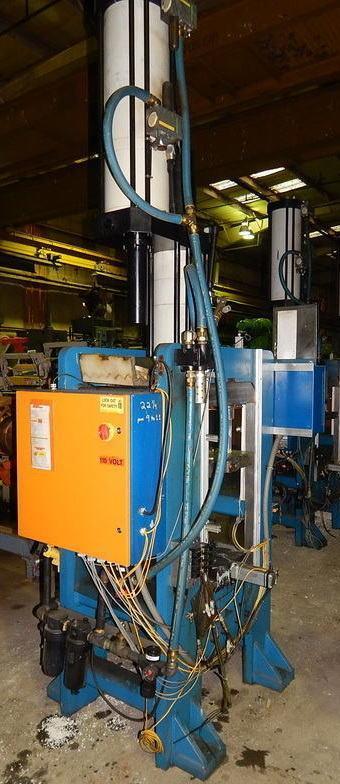

90 Ton FARGER & JOOSTEN MULTIPOWER Air/Oil Press

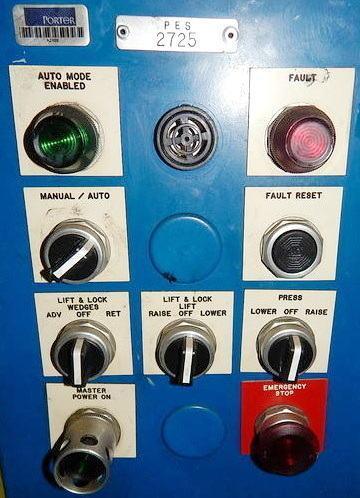

Serial Number: 2725
SPECIFICATIONS:
Built for Side-to-Side Feed
Tonnage, Est.: 90 Ton
Stroke: 7.9", the last .79" is the Power Stroke
Daylight Opening: 26"
Bed: 24" LR x 17" FB x 2" Thick

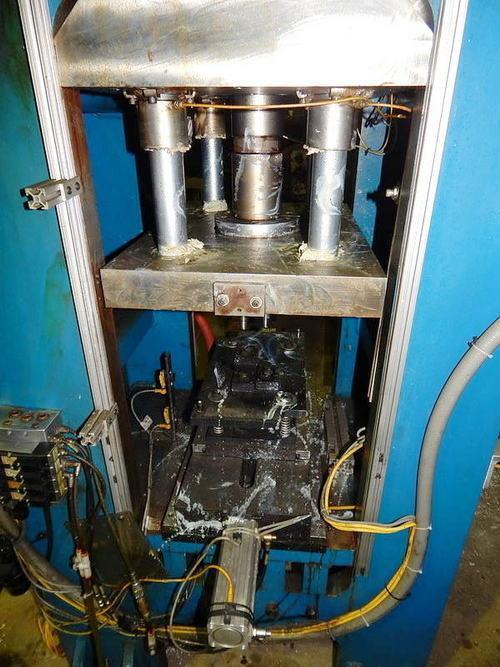

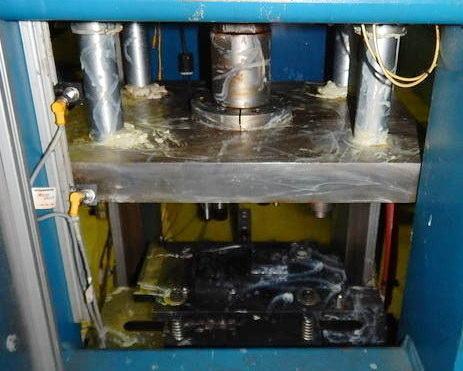

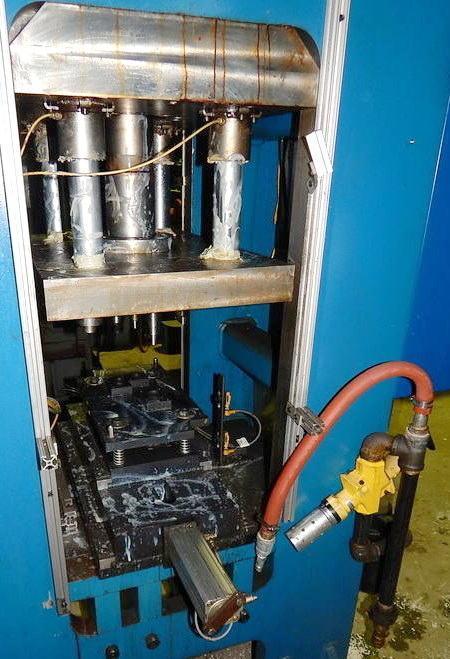

Ram: 24" LR x 17" FB x 2-1/2" Thick
Force in Approach Stroke: 17.4kN
Force in Retract Stroke: 16.3kN
Force in Power Stroke: 457kN
Pass Line, Floor to Top of Bed: 24"
Windows, Both Sides, On Center of Bed: 18"
Side Frame, Thickness: 2"
Distance Inside Side Frames: 20"
OVERALL DIMENSIONS: 36" LR x 54" FB x 132" High
