Equipped With

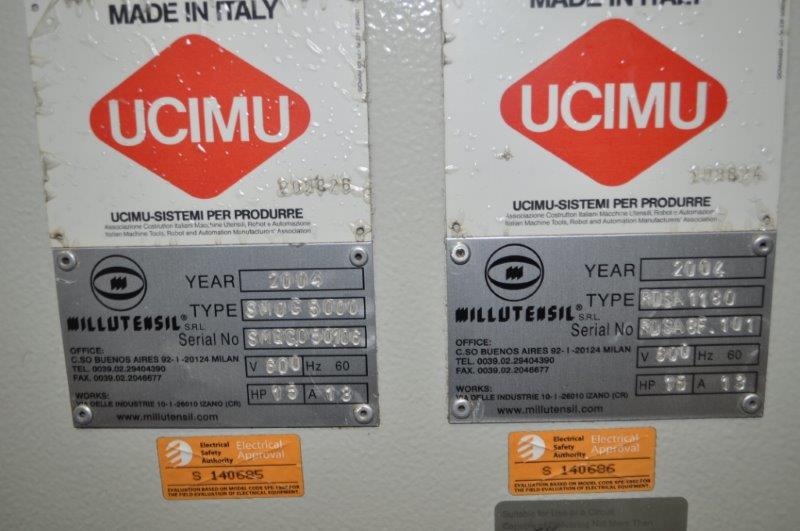

MODEL #: SMOC 5000 / RDSA 1180
SERIAL #: SMOCO 50106 / ROSA8F - 101
UNCOILER :
6600 LB CAPACITY
16"-20" ID
72" OD
31" MANDREL

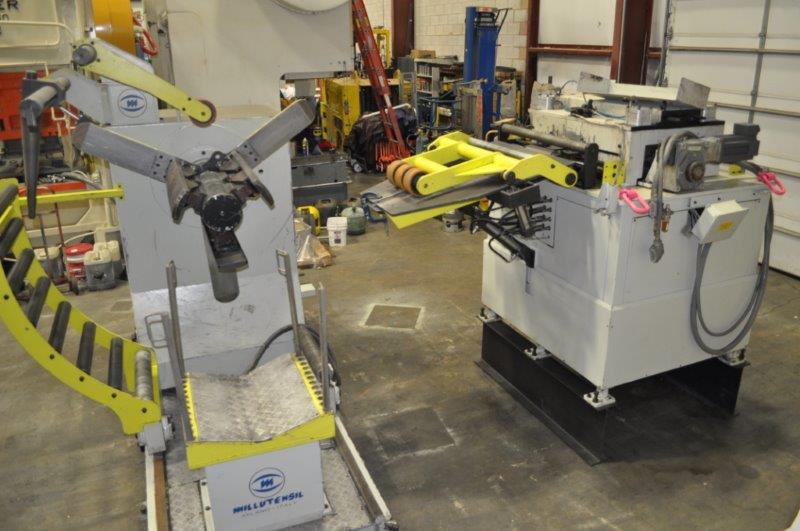

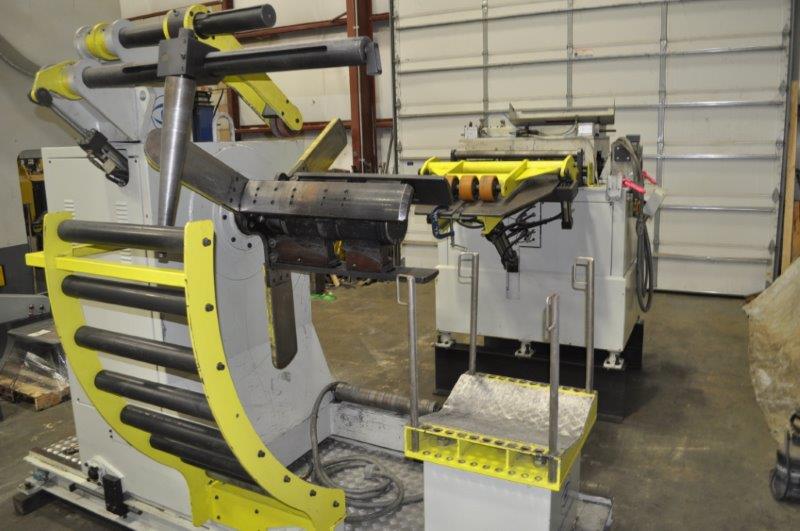

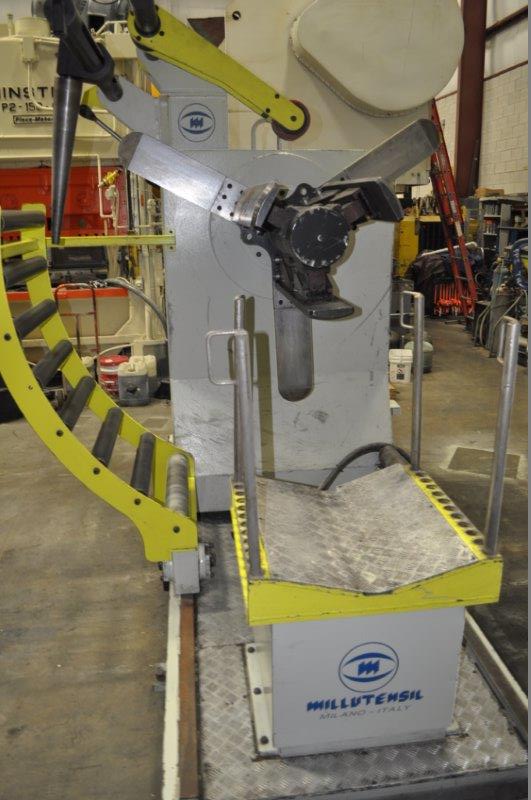

MOTORIZED TRAVELING HEAD UNCOILER
COIL LIFT
COIL HOLD DOWN ARM
HYDRAULIC EXPANSION

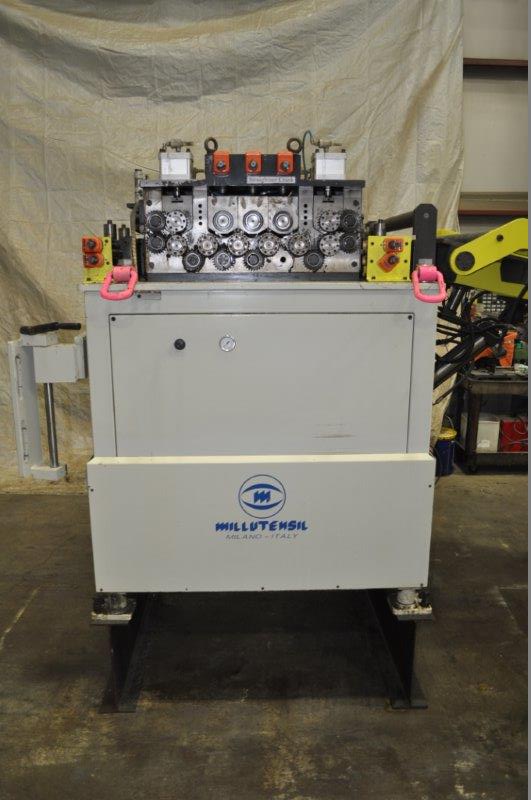

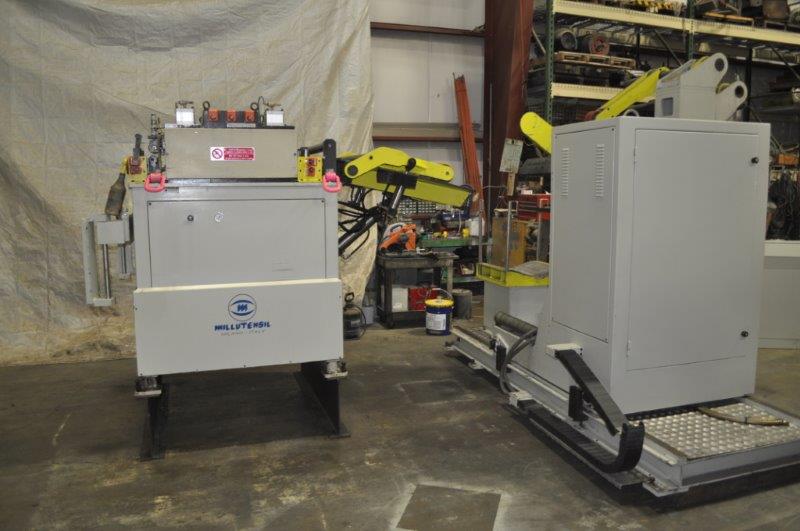

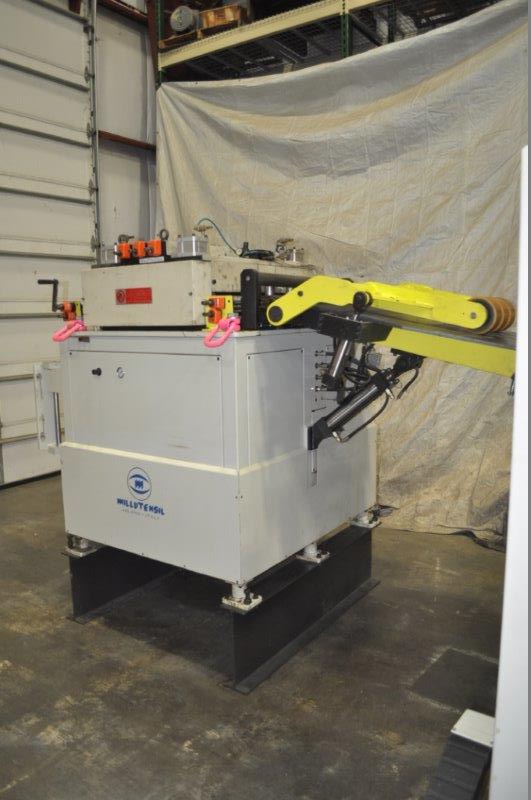

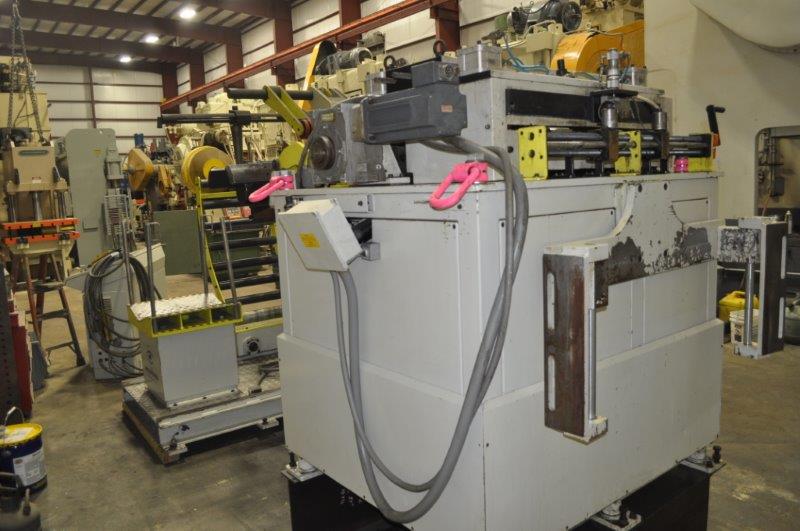

STRAIGHTENER SERVO FEEDER COMBO:
31" MAXIMUM MATERIAL WIDTH
.020" - 118" THICKNESS CAPACITY

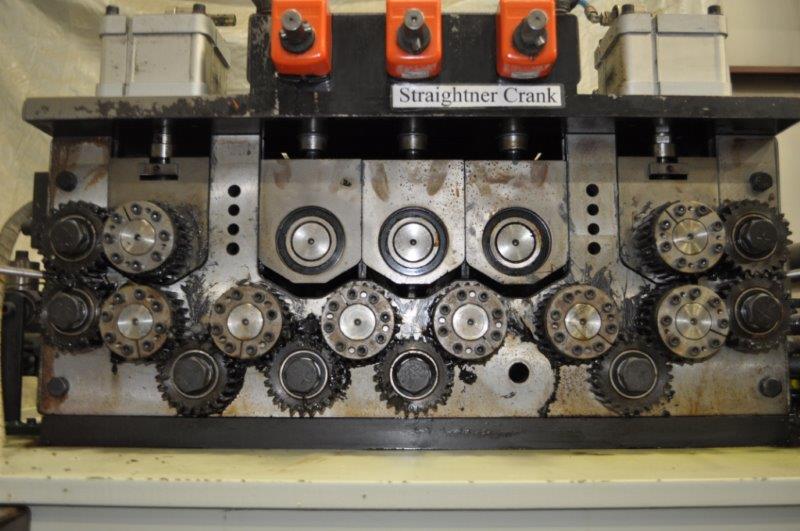

7 ROLL STRAIGHTENER
ENTRY AND EXIT PINCH ROLLS WITH AIR LIFT
PEELER TABLE
PILOT RELEASE
124" LR x 76" FB x 104" TALL UNCOILER DIMENSIONS
90" LR x 60" FB x 87" TALL STRAIGHTENER FEEDER DIMENSIONS
64" LR x 23" FB CONTROL
APPROXIMATE LINE WEIGHT 18,000 LBS
VERY GOOD CONDITION
