Equipped With
MODEL #: SMOC 3000 / RDSA 1180 650
SERIAL #: SMOC030103/ RDSA 8E- 101

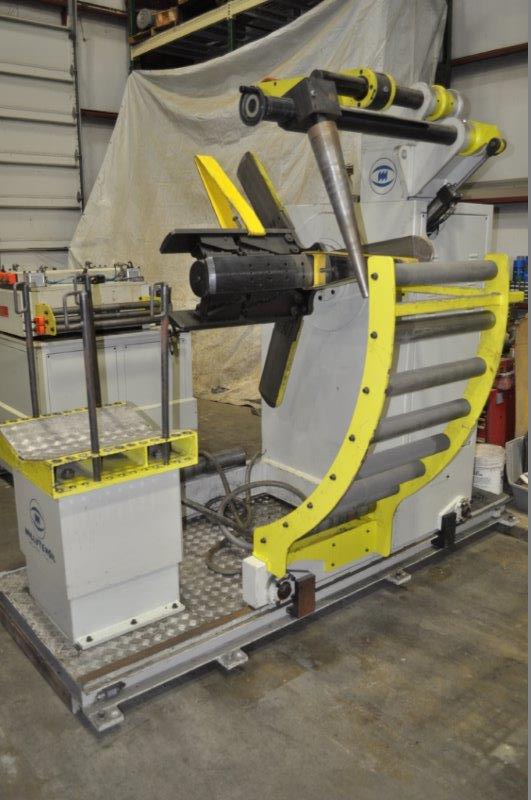

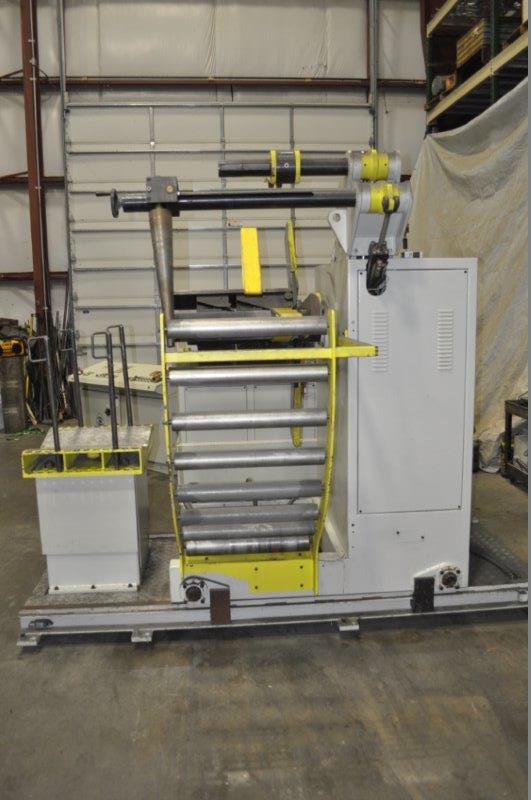

UNCOILER :
6600 LB CAPACITY
16"-20" ID
72" OD
26" MANDREL
MOTORIZED TRAVELING HEAD UNCOILER
COIL LIFT
COIL HOLD DOWN ARM
HYDRAULIC EXPANSION

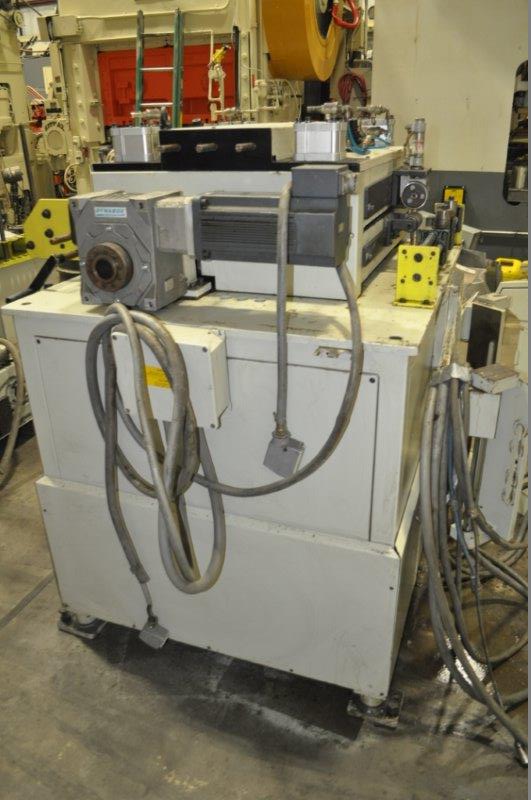

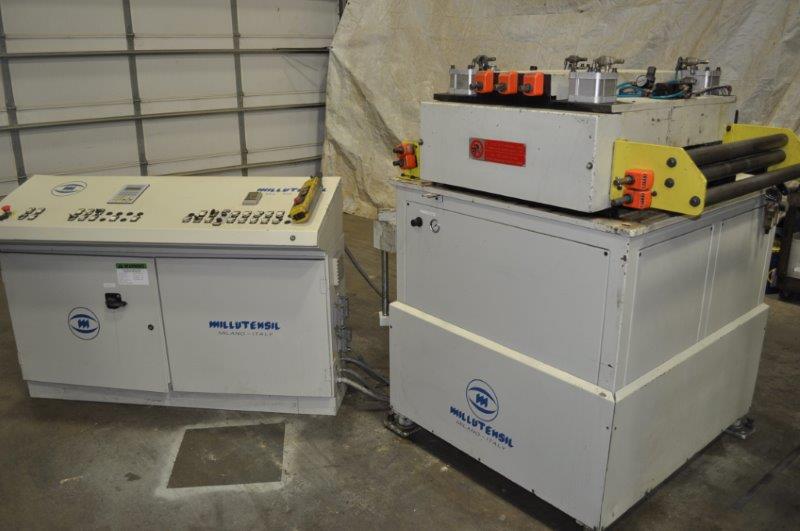

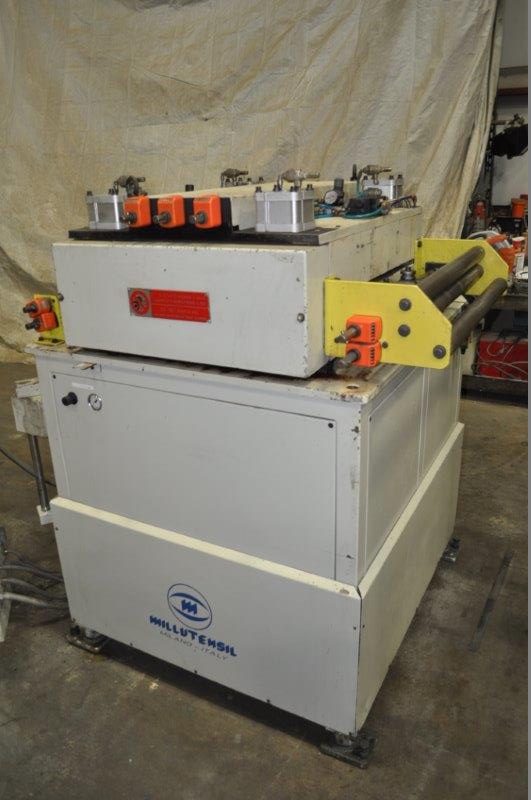

STRAIGHTENER SERVO FEEDER COMBO:
26" MAXIMUM MATERIAL WIDTH
.020" - .118" THICKNESS CAPACITY
7 ROLL STRAIGHTENER
ENTRY AND EXIT PINCH ROLLS WITH AIR LIFT
PILOT RELEASE
112" LR x 70" FB x 105" TALL UNCOILER DIMENSIONS
58" LR x 55" FB x 65" TALL STRAIGHTENER FEEDER DIMENSIONS

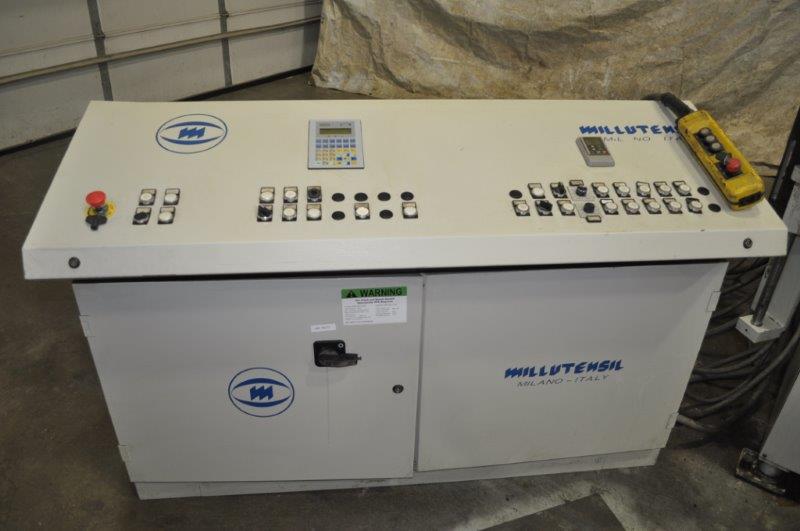

63" LR x 23" FB x 50" TALL CONTROL DIMENSIONS
APPROXIMATE LINE WEIGHT 15,000 LBS
VERY GOOD CONDITION
