MODEL #: UR5-4DD-24H
SERIAL #: 5164
AGE: 1996
MODEL: UR5-4-DD-24H
SPECIFICATIONS:

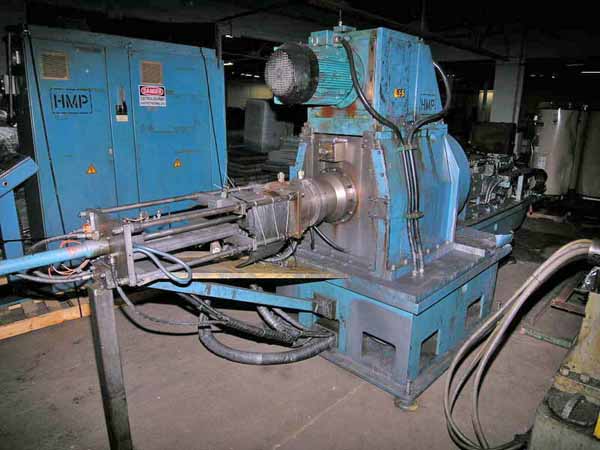

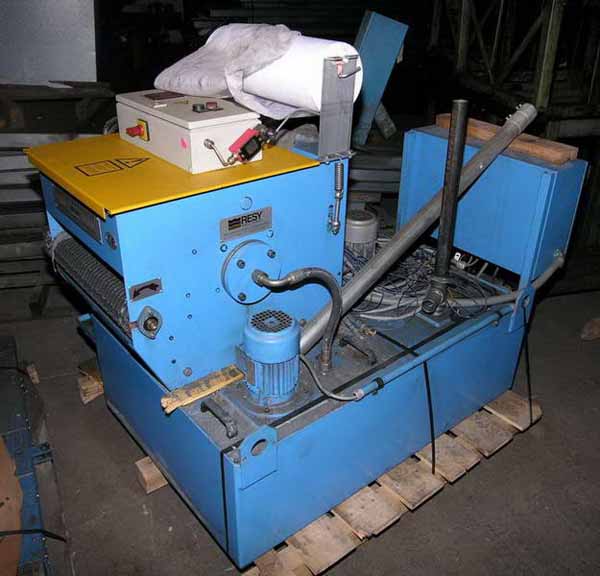

This is a Single Station Swaging Machine
This Machine has Both Internal Rotating Spindle and Outer
Roller Cage Counter Rotating Ring
Capacity:
Bars: 5.0mm to 30mm
Tubes: 5.0mm to 60mm
Swaging Dies: 50 x 55 x 120mm (w x h x l)
This Machine can:
1.) Plunge Feed
2.) Infeed Swage
3.) Combination Plunge/Infeed Swaging
Also Can Swage Over a Mandrel, Hydraulic Powered Rear In
Feed of Mandrel/Extraction
Stroke Frequency: 1830 RPM
Spindle Rotation: 120 RPM
Outer Ring Rotation: 200 RPM
This is a Four Die Swager with Wedge Type Collapsing System
Allowing Plunging Into the Center of the Part. It Also
has a 500 mm Stroke Hydraulic Feed System with Hydraulic
Part Clamping. This Machine can also be Used to Swage
Internal Linear Forms such as Splines inside of Tubing.
EQUIPPED WITH: Interchangeable 4-Die Swaging Head UR5-4DD-A-3/1
Mandrel & Pusher Device UR5-4DD-N1-05-300

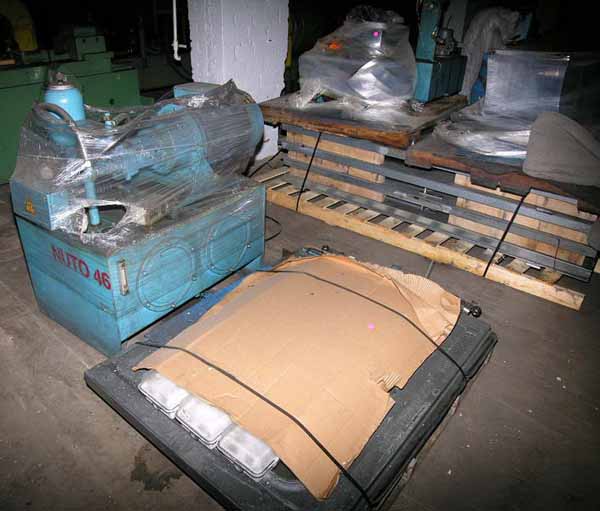

Hyd. Feed Sys. 24H-4050-03-100

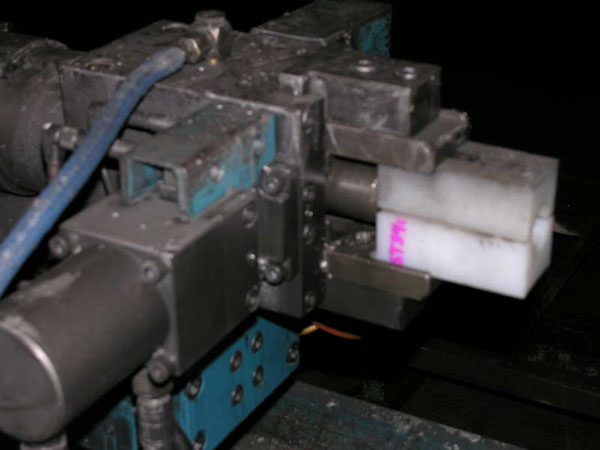

Hyd. Clamping Jaw 24H-4005-01-200 (40mm Piston)
w/Rotating Stop 24H-21-200 & Workpiece
Orientation System
Mandrel Device 24H-4055-00-600 on Feed Slide
Feeder Slide Lock Device 24H-5025-00-800

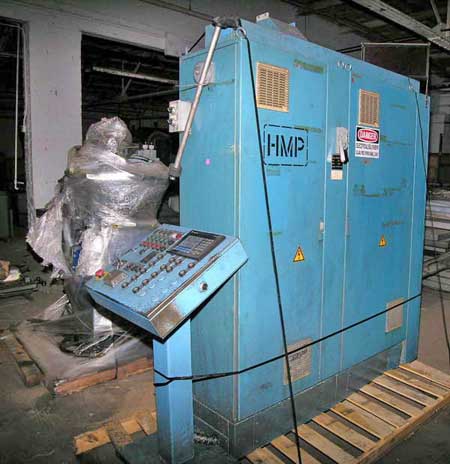

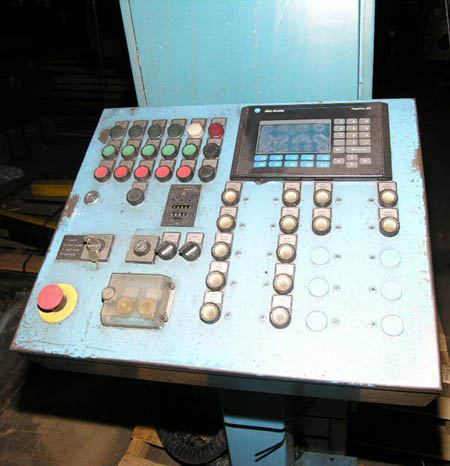

Complete Control System w/Operator Control
Pedestal
Siemens Controls

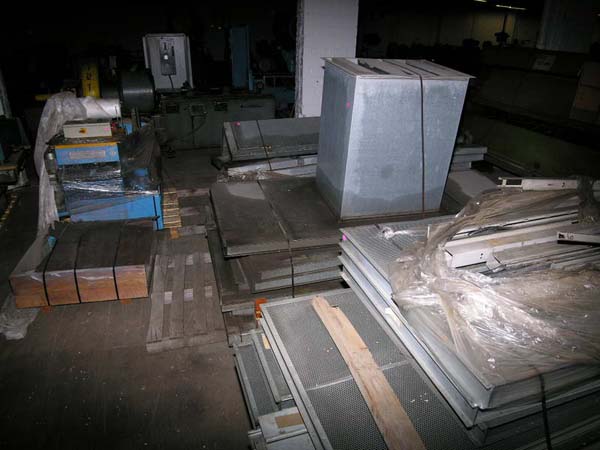

Sound Enclosure Room Type

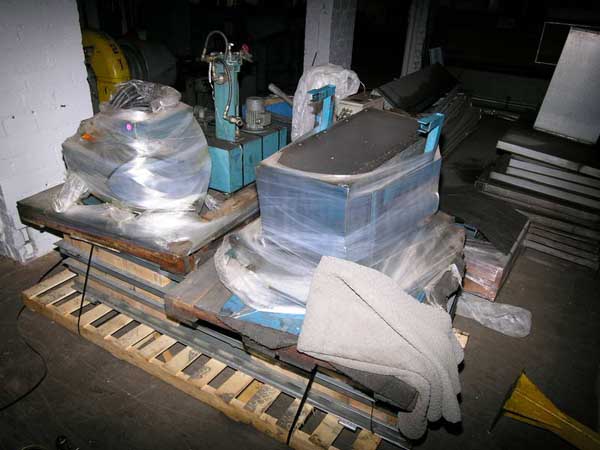

Many Spares
Wired for: 460/3/60, 80 Amp
Control Voltage: 120 & 24 Volt DC
Motor Data: 8.6 w, 18 kw plus Hyd. Pump
Loaded on Truck....................................Toledo, OH
**PHOTOS, MANUALS & DRAWINGS AVAILABLE
