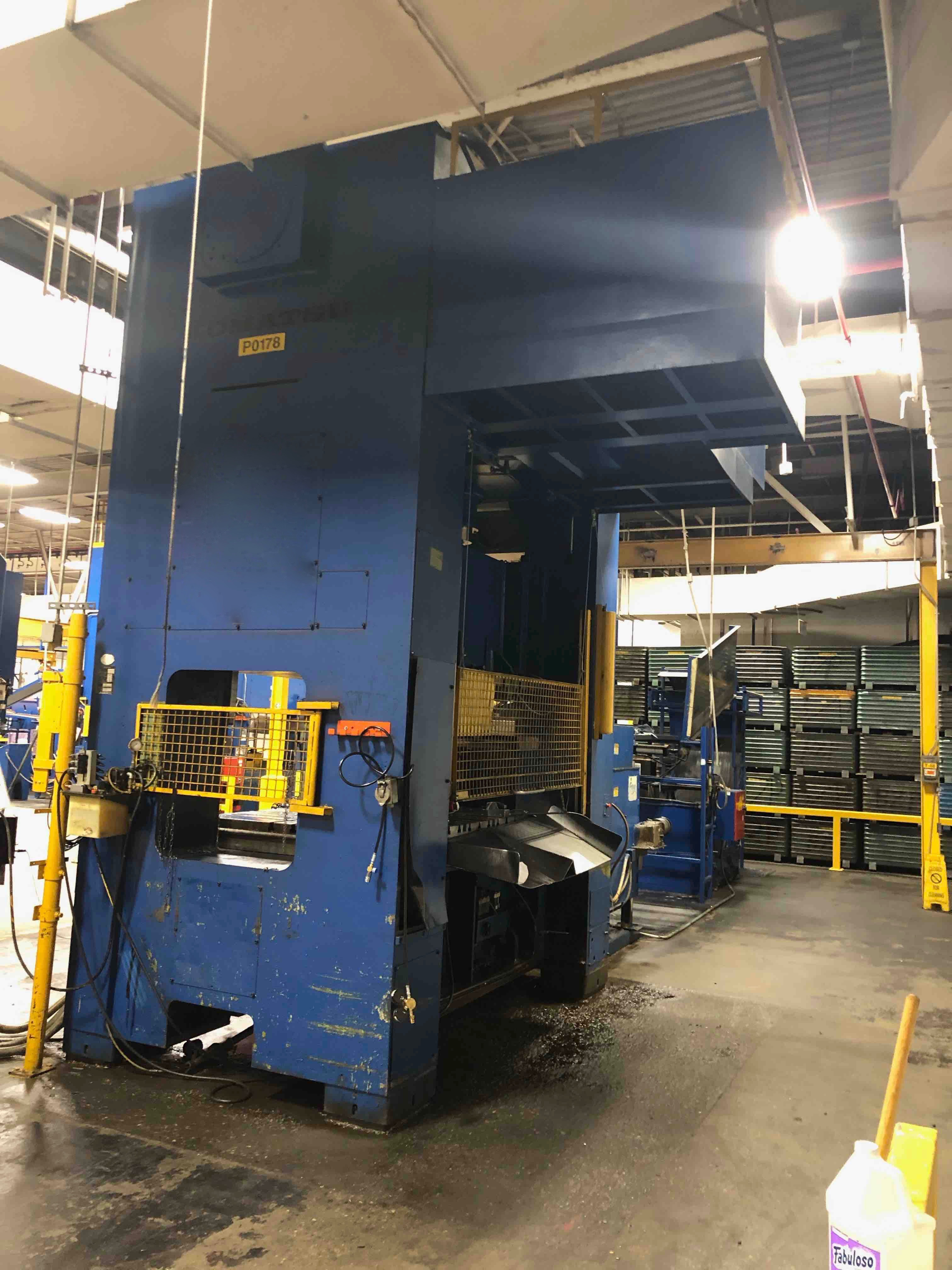

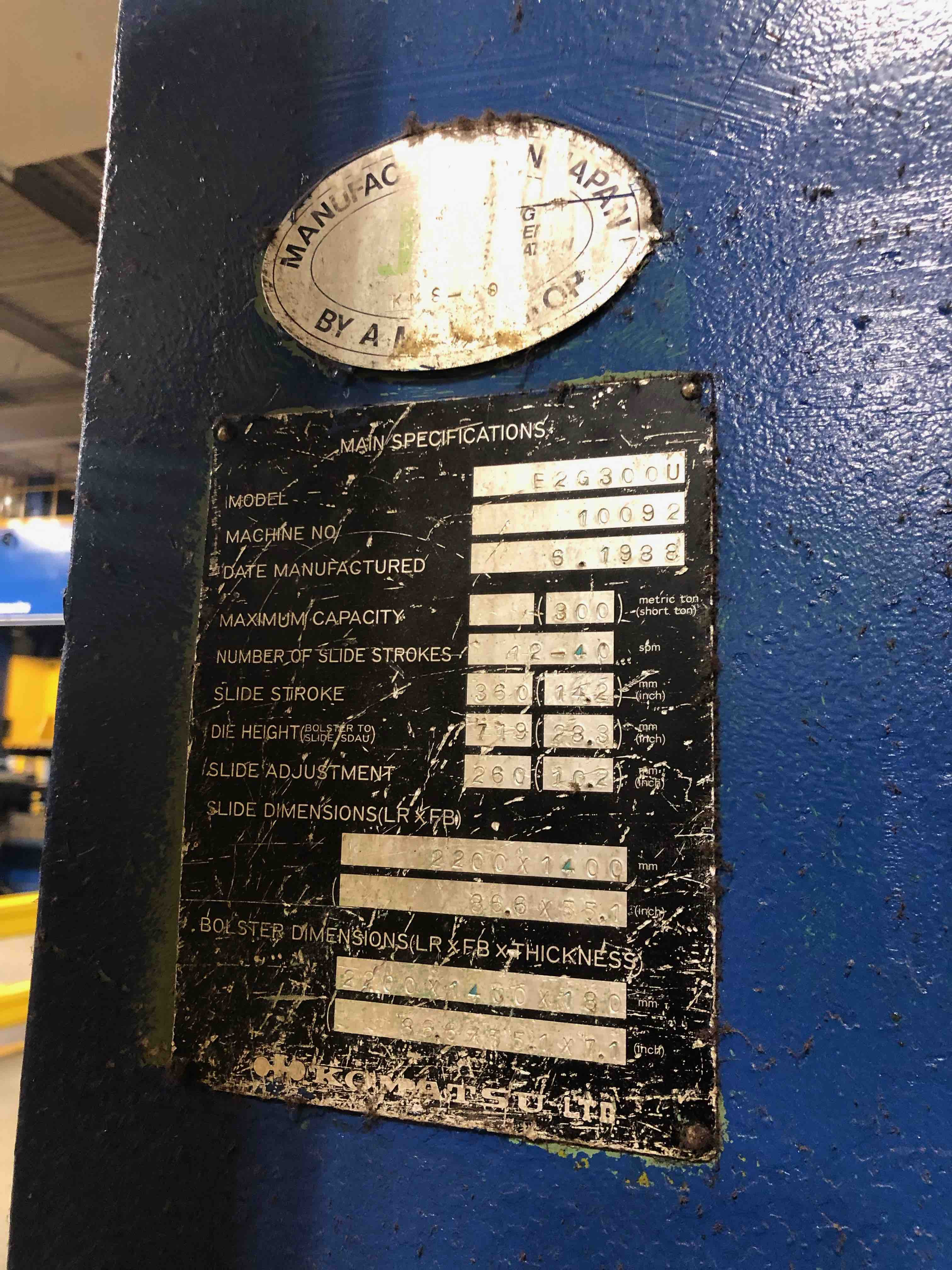

MODEL: E2G300U
SERIAL: 10092
YEAR: 1988
330 TON CAPACITY
14.2" STROKE (360 mm)
28.3" DIE HEIGHT (S.D.A.U.) (719 mm)
10.2" SLIDE ADJUSTMENT (260 mm)
86.6" LR X 55.1" FB SLIDE AREA (2200 mm X 1400 mm)
86.6" LR X 55.1" FB BOLSTER AREA (2200 mm X 1400 mm)
12-40 SPM VARIABLE
EQUIPPED WITH

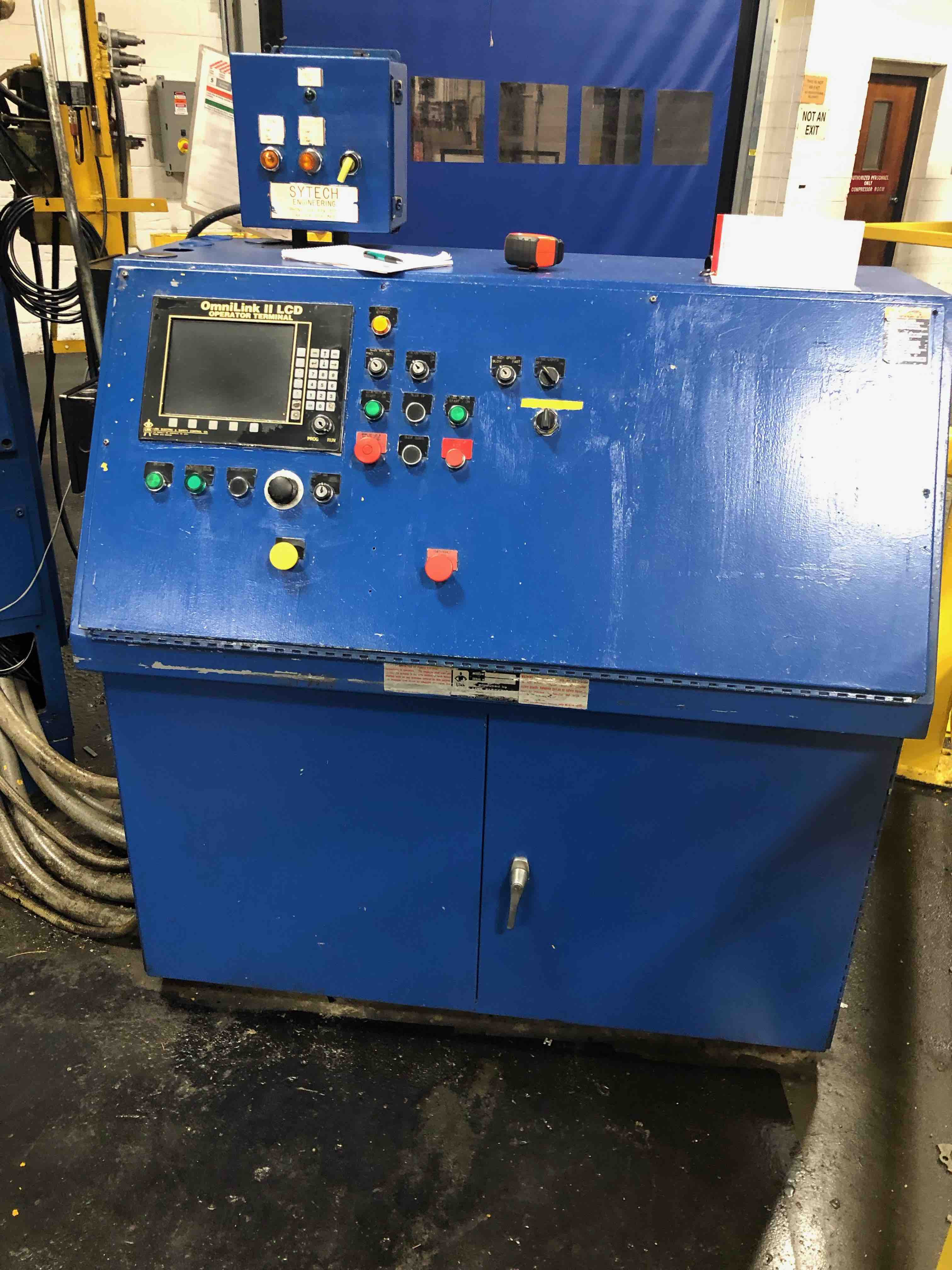

KOMATSU PRESS CONTROL CONSOLE
OMNILINK II PRESS OPERATOR TERMINAL
PRESS CONTROL T-STAND
SHADOW 8 WINTRISS LIGHT CURTAINS
WINDOWS
8" THICKNESS T-SLOTTED BOLSTER
T-SLOTTED SLIDE BOLSTER
LUBE SYSTEM
