Equipped With

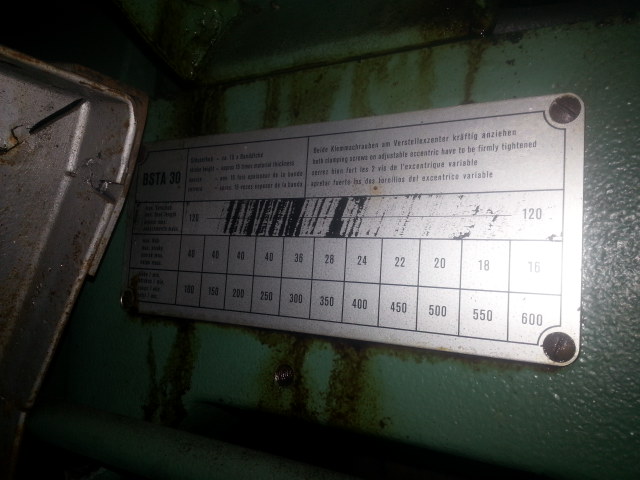

MODEL: BSTA30
.629"-1.57" ADJUSTABLE STROKE
7.5" SHUT HEIGHT (ESTIMATED OVER THE SUB BOLSTER)
21.5" x 18.375" x 2.375" BOLSTER
12" BETWEEN TIE BARS x 18.375" x 1.75" SUB BOLSTER
6" x 2" OPENING
21.5" x 18.375" RAM
2" LOCATING HOLE IN CENTER
100-600 SPM
P/A INDUSTRIES "THE MINI" SERVO FEED
4" WIDE x .048" THICK @ FULL WIDTH MECHANICAL PILOT RELEASE & FEED ROLL-
OPENING
CASCADE MATERIAL SUPPORT ROLLS
VIBRO DYNAMICS ISOLATORS
GOOD CONDITION
