Equipped With
NON-FERROUS TUBING 1 ½" OD x .065 WALL
STEEL TUBING 1-3/8" OD x .065 WALL
EXTRA HEAVY PIPE ¾"
STAINLESS STEEL TUBING 1-1/8" OD X .065 WALL
STEEL BAR-ROUND ¾" DIAMETER
MAX. RADIUS-STANDARD 10"
MAX. RADIUS-EXTRA 18"
MAX. TUBE LENGTH OVER MANDREL STANDARD 9'11"
MAX. TUBE LENGTH OVER MANDREL EXTRA ANY LENGTH
BENDING ARM SPEED AVG. MAXIMUM 27 RPM
MOTOR 10 HP, 230/460/60/3, 1745 RPM
FLOOR SPACE: 4' X 12'
APPROX. WEIGHT 2750 LBS
COUNTERCLOCKWISE
CYLINDER 3 ½" ESTIMATED

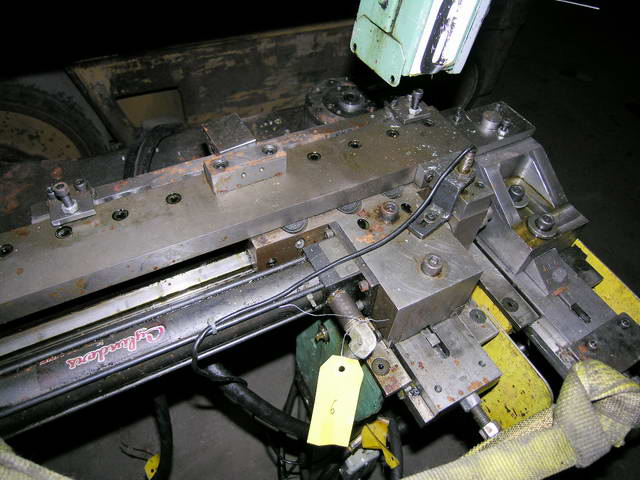

GRIP ARM SLIDE LENGTH 15"
PRESSURE DIE ASSIST
MANDREL EXTRACTOR

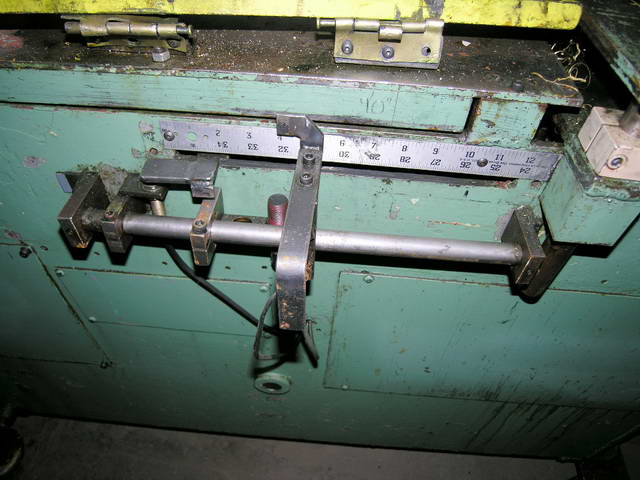

RETROFITTED WITH SINGLE BEND PROXIMITY SENSOR TYPE DEGREE OF BEND
