Coil O.D. capacity: 60 inches
Air Feeds Inc. Double End Coil Reel Uncoiler and Powered Coil Straightener Combination Specifications:
Coil weight capacity: 15,000 Lbs. (per side)
Coil width capacity: 48"
Stock thickness capacity: .080" x 48" Wide
Stock thickness capacity: .150" x 24" Wide
Expansion range: 20" - 24" (To Be Confirmed)
Coil O.D. capacity: 60"
Air Feeds Inc. Double End Coil Reel Uncoiler and Powered Coil Straightener Combination Equipment and Features:

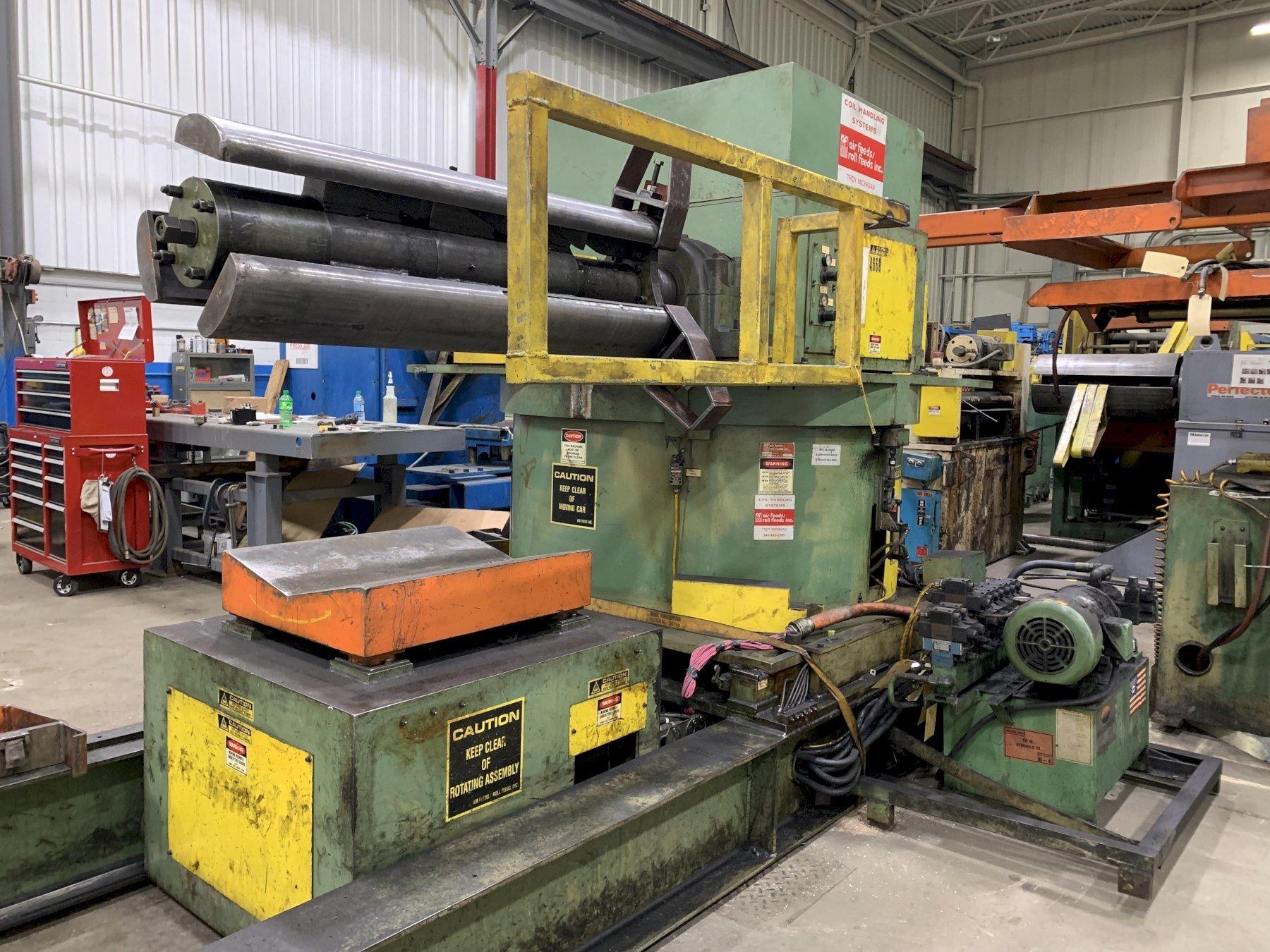

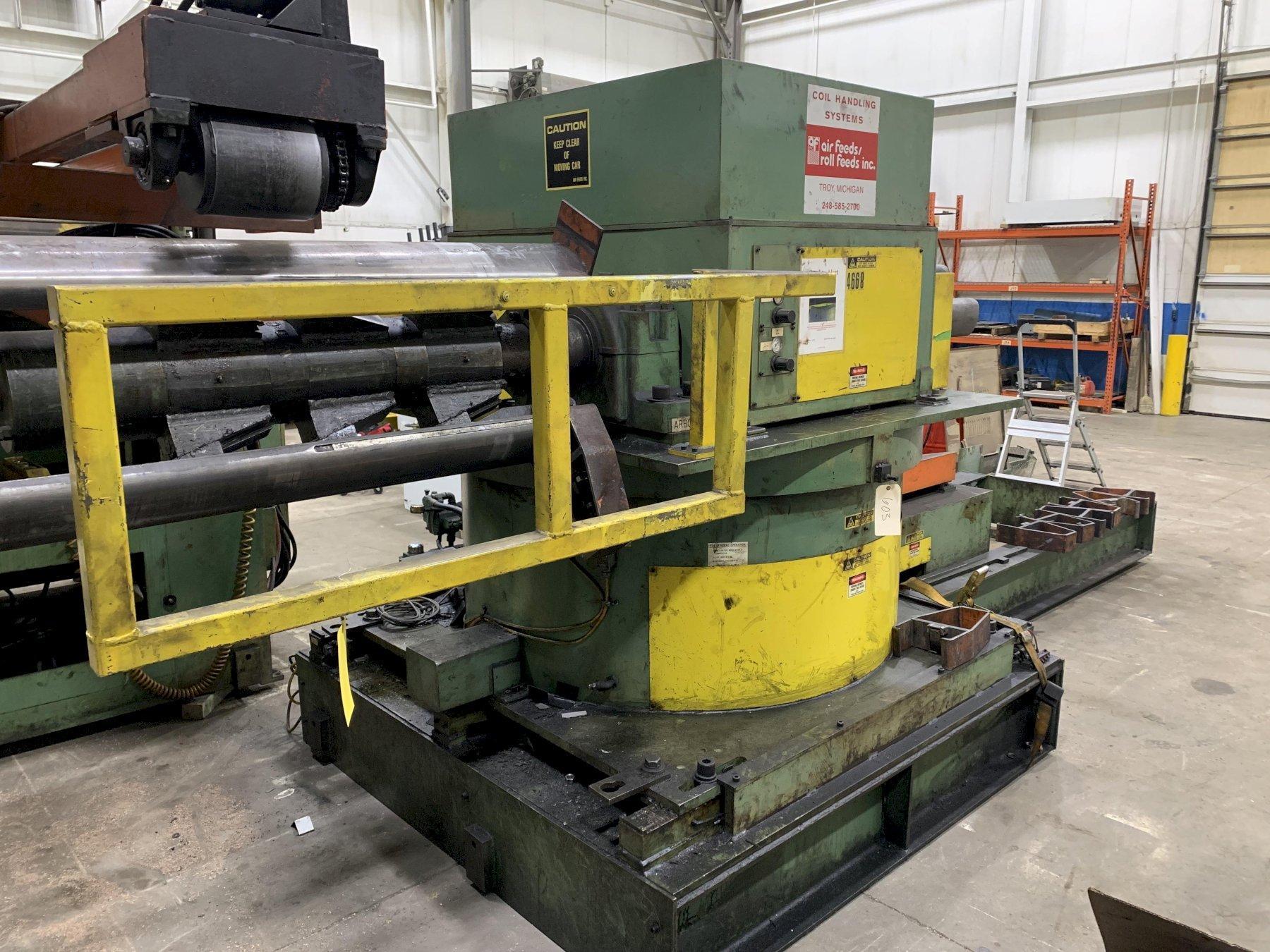

Air Feeds Inc. Double End Coil Reel Uncoiler Model No.: DR15000, Serial No.: 990204
Three leaf mandrel coil reel (per side)
Full set of coil reel keeper arms
Hydraulic coil reel mandrel expansion
Powered threading drive for jog forward and reverse
Air brake mounted on main coil reel spindles
Adjustable tensioning
Self contained hydraulic unit

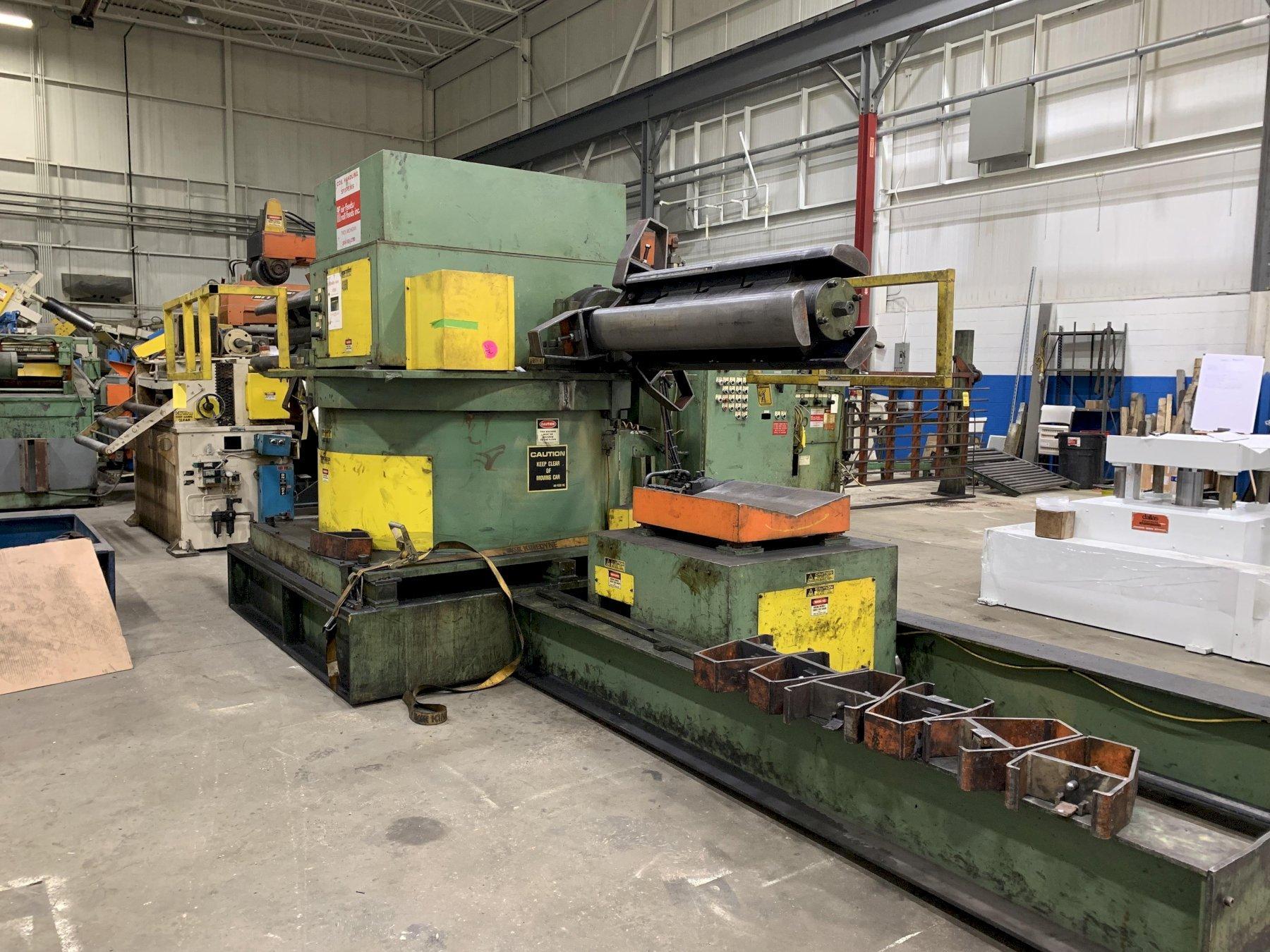

Air Feeds Inc. Traveling Coil Load Car Model No.: TLC15000, Serial No.: 990206
Powered lift and travel
Narrow coil supports

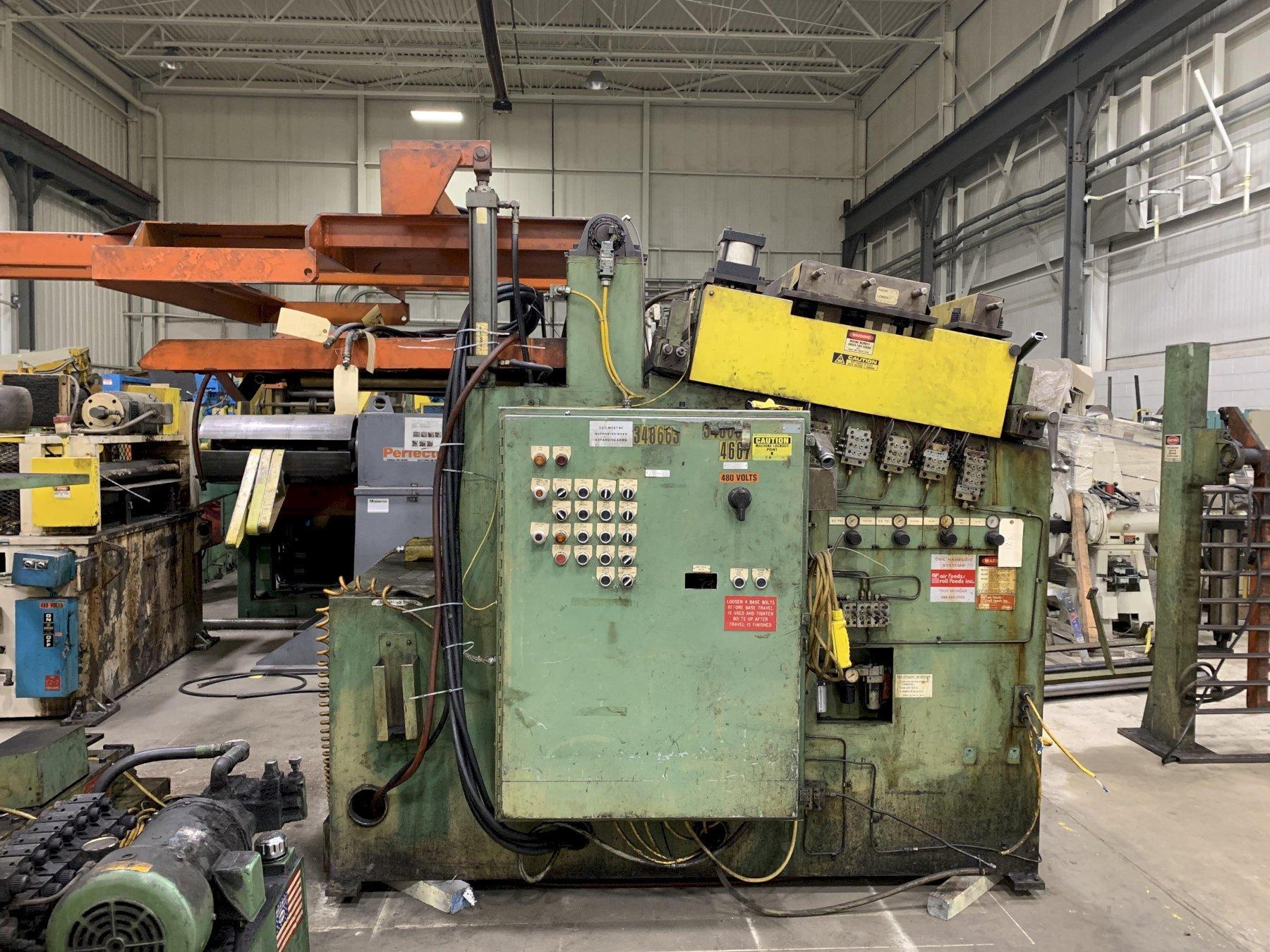

Air Feeds Inc. Powered Coil Straightener Model No.: PS-300-7-48 , Serial No.: 990210
Powered coil straightener entry and exit pinch rolls
Air operated upper powered coil straightener entry pinch roll actuation
Manual exit upper powered coil straightener pinch roll adjustments
Seven coil straightening rolls x 3.00 inch diameter
Manual coil straightening roll adjustments
Coil hold down arm with motorized end wheel for coil threading
Stock peeler table with extension for coil threading
Hand crank adjustable stock width edge guides
Inclined powered coil straightening head
Variable speed drive
Common operator's controls station
New or used servo feeds available to complete the line - consult sales for pricing
