Serial# 00211-7225

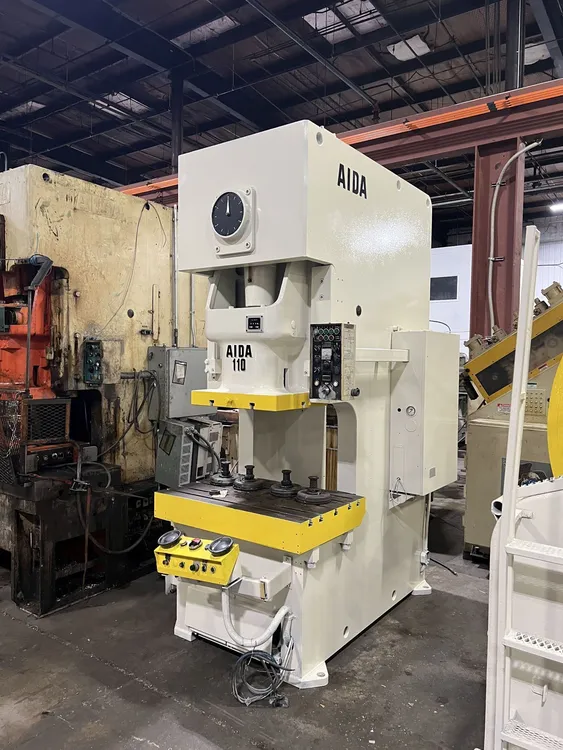

MODEL: NC1-11(2)-B
Capacity: 121 US Tons
Stroke: 7.09”
Spped: 35 - 65 SPM
Shut Height: 13.79” over bolster (slide down adjustment up)
Adjustment: 3.54”
Bed Area: 42.1” lr x 26.8” fb
Slide Area: 24.8” lr x 20.05: fb
Max Upper Die Weight: 1213#
Main Motor: 10 HP
Equipped with:
Air Clutch and Brake
Hyd Overloads
Air counterbalances
