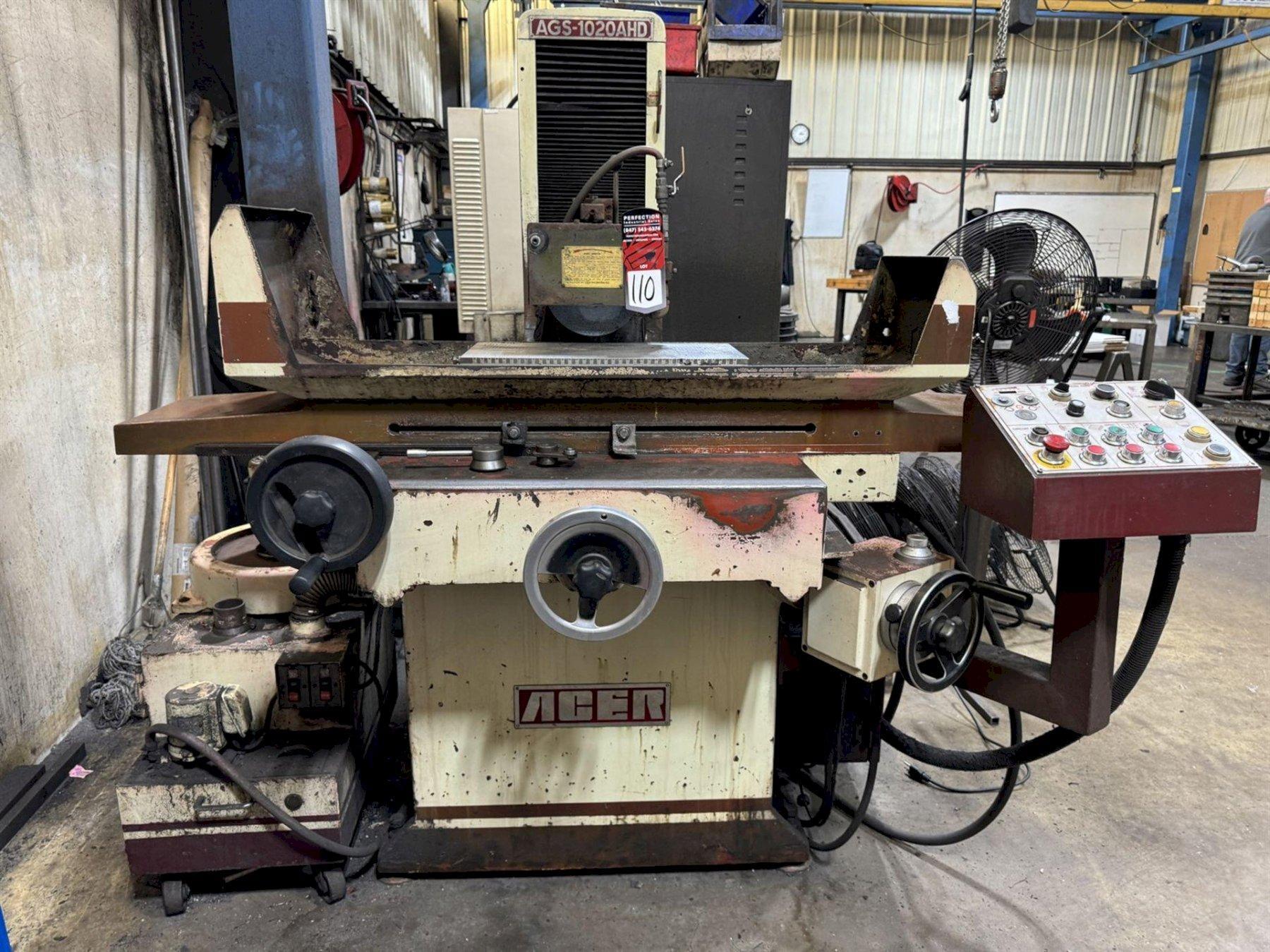

MODEL AGS-1020AHD

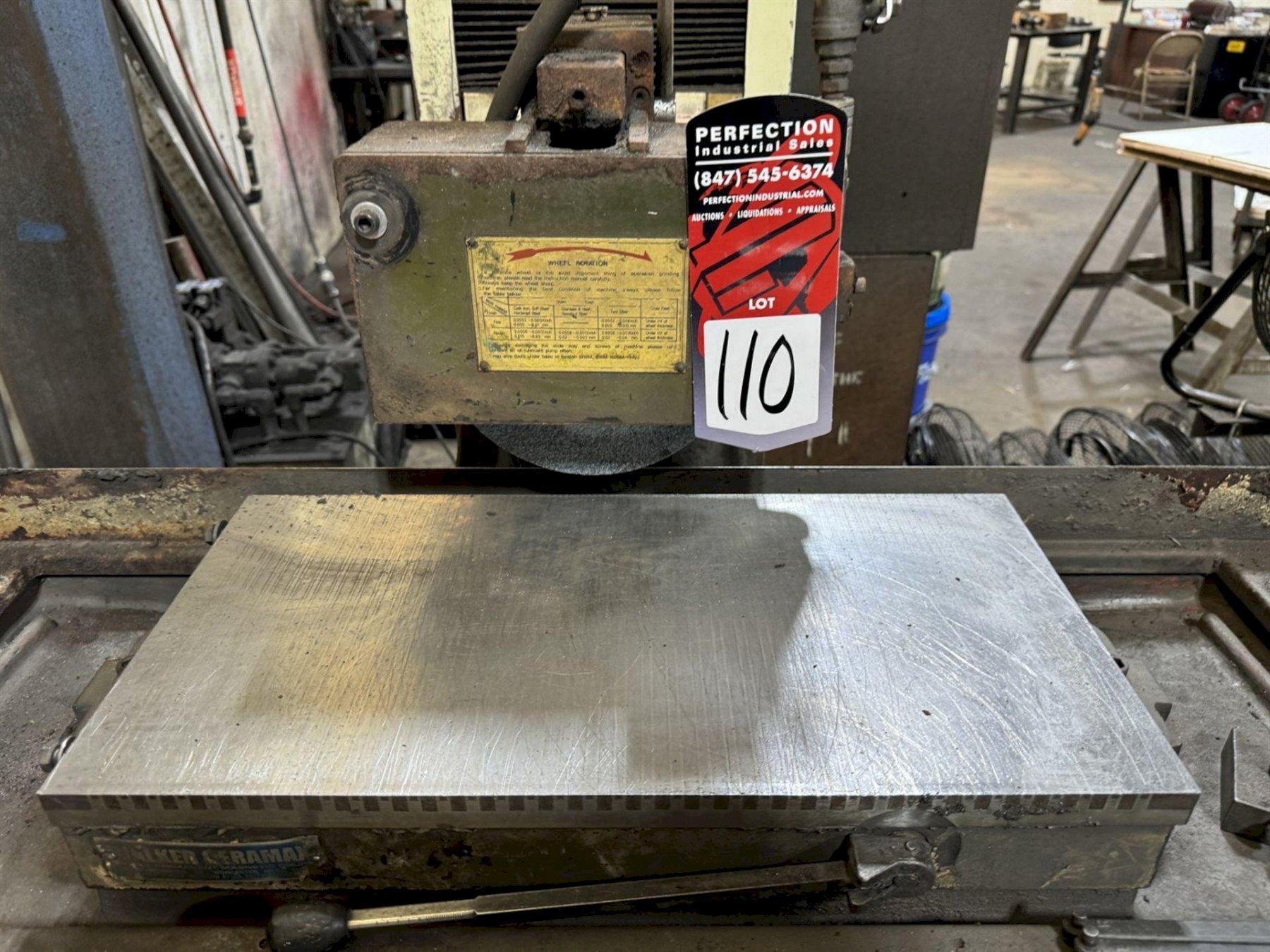

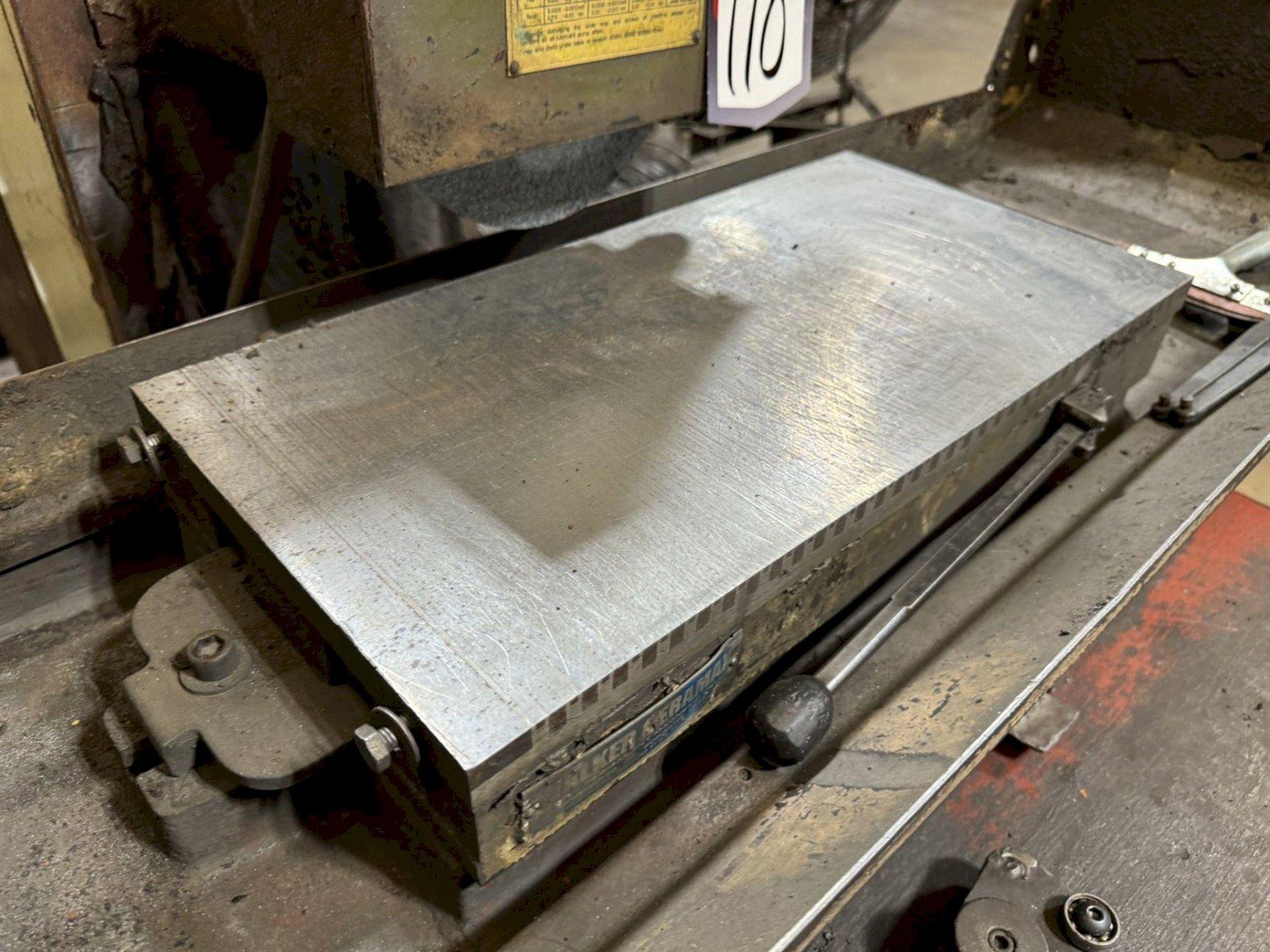

TABLE WORKING SURFACE 8"W X 9" X 20"
GRINDING WIDTH CAPACITY MAXIMUM 10"
GRINDING LENGHT CAPACITY MAXIMUM 20"
HEIGHT SPINDLE CENTER TO TABLE MAXIMUM 19 1/2"
TABLE LOAD CAPACITY 1000 LBS
TABLE LONGITUDINAL POWER 20 1/2"
TABLE CROSS TRAVEL 11"
GRINDING WHEEL DIAMETER, STANDARD 8"
GRINDING WHEEL WIDTH, STANDARD .05"
GRINDING WHEEL HOLE DIAMETER 1.25"
GRINDING SPINDLE SPEED 3580 RPM
TABLE LONGITUDINAL FEEDS, RANGE 16-80 FPM
CROSSFEED TRAVEL FEEDS, AUTO 0-1"
SPINDLE AUTO DOWNFEED, RANGE .0001-.001 IPR
SPINDLE HORSEPOWER 2HP

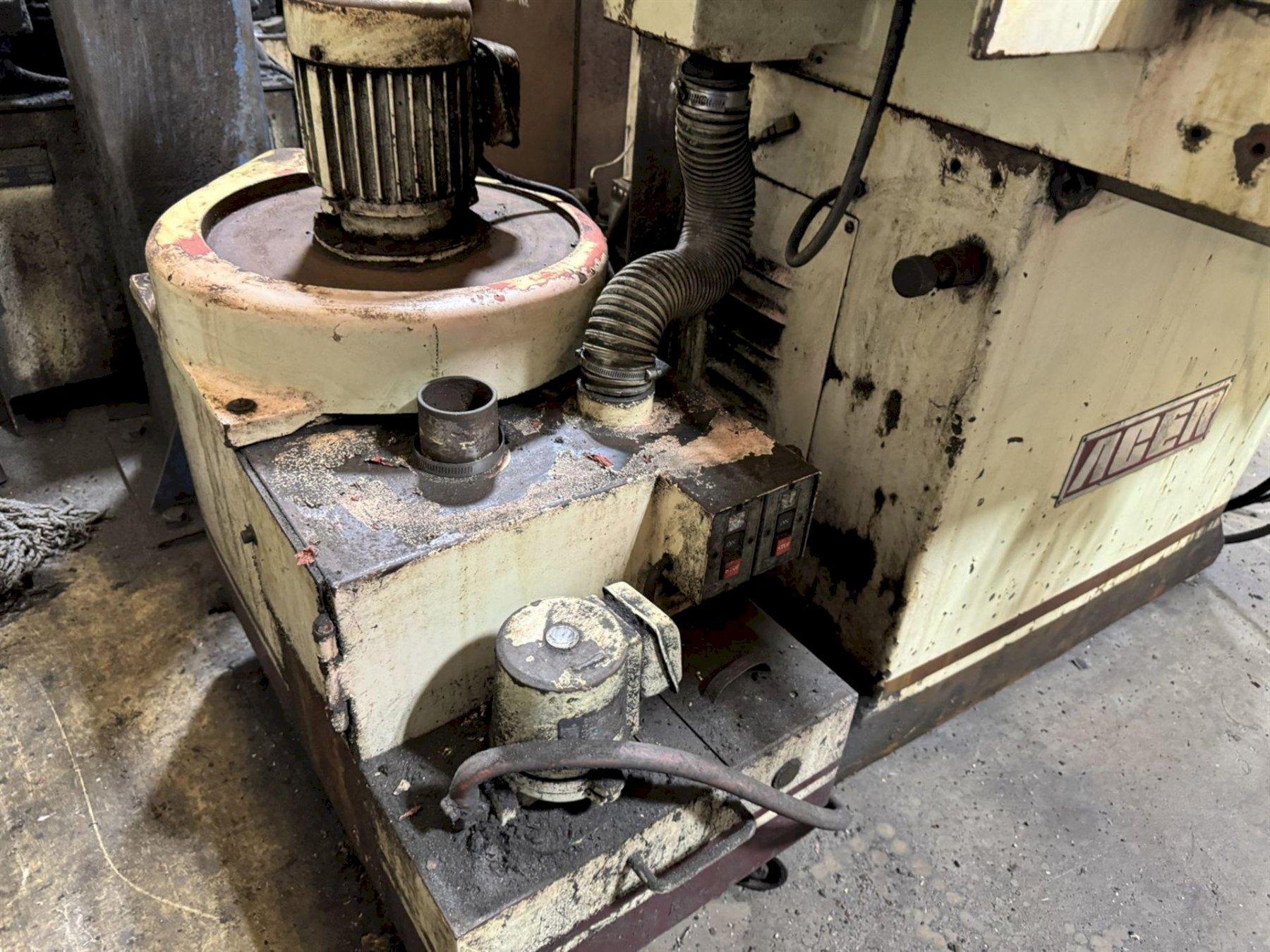

HYDRAULIC MOTOR HORSEPOWER 2HP
FLOOR SPACE REQUIRED 5'6" X 6'
WEIGHT, APPROXIMATELY 3580 LBS
