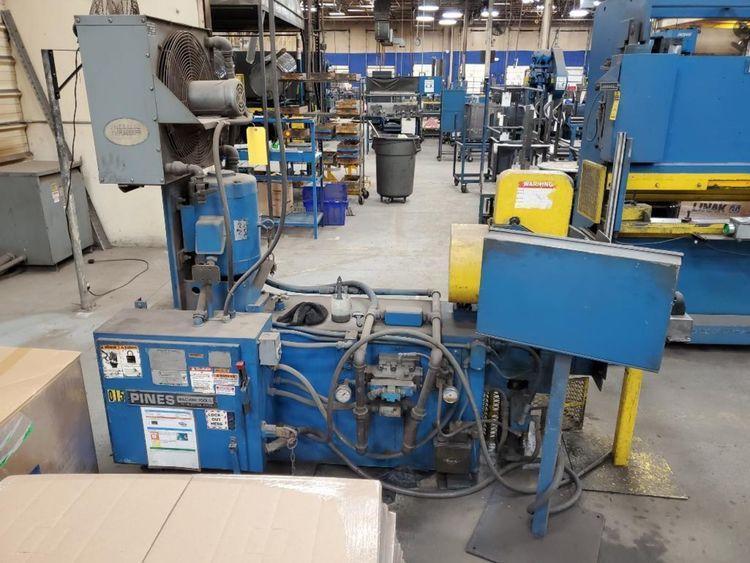

Capacity: 1 1/2” OD Capacity x .065” wall thickness

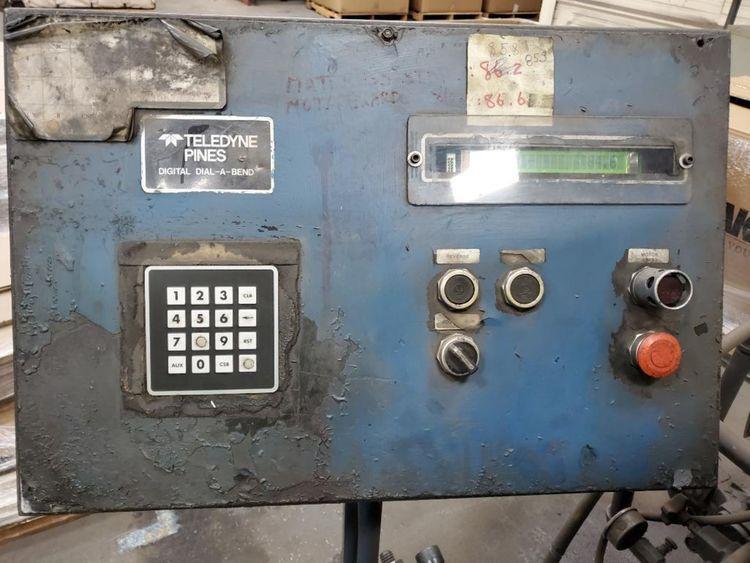

Digital Dial a Bend Control
Bending Angle Max: 140º
2000 PSI Operating Pressure
1500 Bends per hour
Max Centerling Radius: 4.5” - 90º or less
Min Centerline Radius: 2 to 3 times tube diameter
Work Height: 40”
Motor: 20 HP
1989

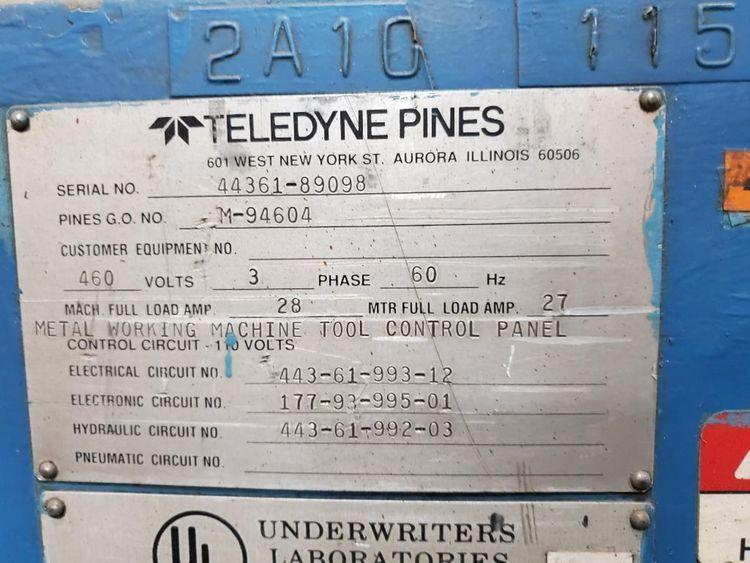

Votage: 230/460v / 3ph / 60 cycle
Full Load Amp Draw: 28
Approx Dimensions: 87” lr x 50” fb x 60” tall
Approx Weight: 3000#
